Wuque Studio WS Jade

Linear Wuque Studio

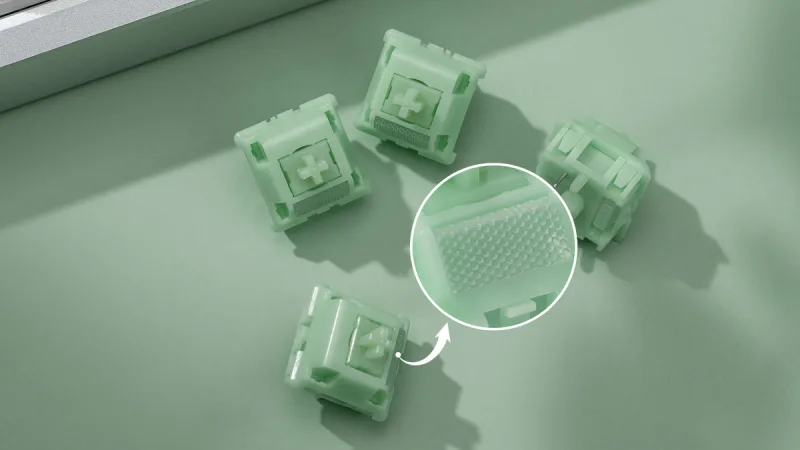

Wuque Studio WS Jade switch
Image courtesy of Wuque Studio

The Wuque Studio WS Jade is a linear switch with POM top and bottom housings, a UPE and stainless steel stem, and a factory-lubed 18mm double-stage spring, with a 50g operating force over 3.6mm of total travel.

Wuque Studio WS Jade specs

Type Linear
Actuation force 50g
Bottom-out force n/a
Pre-travel 2 mm
Total travel 3.6 mm
Stem UPE and stainless steel
Top housing POM
Bottom housing POM
Spring double-stage, 18mm
Factory lube factory lubed
Pins n/a
Typical price $0.47 / switch
Sound profile n/a
Released n/a

Spec fields marked n/a are unpublished by the maker; we list only verifiable numbers rather than guesses.

Unverified: specs compiled from manufacturer listings

Where to buy

KeebScout is reader-supported: some links may earn a commission at no extra cost to you, which keeps the database free. It never changes specs or rankings.

Switches similar to the Wuque Studio WS Jade

Wuque Studio WS Aurora Linear The Wuque Studio WS Aurora is a linear switch with a polycarbonate top housing, POM stem, and a nylon or UHMWPE bottom housing depending on colorway, actuating at 53g and bottoming out at 63.5g across 3.8mm of total travel.
Wuque Studio WS Quartz Linear The Wuque Studio WS Quartz is a linear switch with clear PC top and bottom housings and a nylon stem, factory-lubed and bottoming out at 60g across 3.8mm of total travel, built for RGB-lit keyboards.
Wuque Studio WS Onion Linear The Wuque Studio WS Onion is a linear switch manufactured by JWK, with a PC top housing, nylon bottom housing, POM stem, and a factory-lubed 63.5g WS CL635 gold-plated stainless steel spring.
Wuque Studio WS Morandi Linear The Wuque Studio WS Morandi is a full-POM, UPE-stem linear with removable light diffusers and an unexpectedly deep, muted bottom-out for a long-pole switch.

Which keyboards can use it?

Any hot-swap board with standard MX sockets accepts the Wuque Studio WS Jade. Use KeebScout to shortlist hot-swap boards that fit your budget and size, or browse the keyboard database.
