Kailh Box Silent Pink

Silent linear Kailh

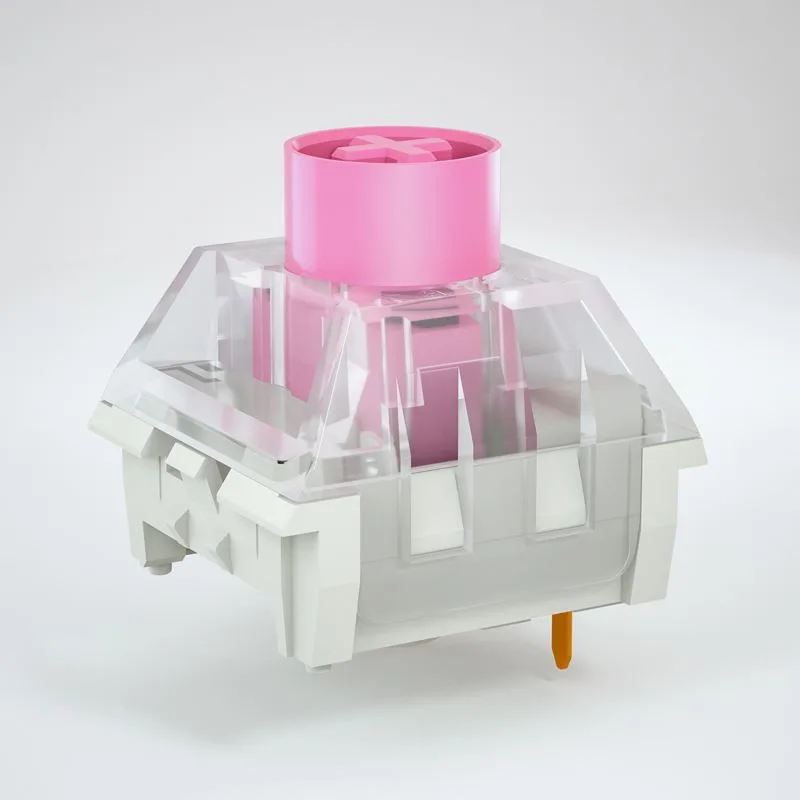

Kailh Box Silent Pink switch
Image courtesy of Kailh

Kailh Box Silent Pink is a light silent linear in Kailh's sealed Box housing, combining dust resistance with dampened travel for quiet office boards.

Kailh Box Silent Pink specs

Type Silent linear
Actuation force 35g
Bottom-out force n/a
Pre-travel n/a
Total travel 3.6 mm
Stem n/a
Top housing Box
Bottom housing Box
Spring n/a
Factory lube n/a
Pins 5-pin
Typical price $0.55 / switch
Sound profile silent box linear
Released 2020

Spec fields marked n/a are unpublished by the maker; we list only verifiable numbers rather than guesses.

Unverified: specs compiled from manufacturer listings

Switches similar to the Kailh Box Silent Pink

Cherry MX Silent Red Silent linear The Cherry MX Silent Red is a 45g linear with integrated rubber dampeners on the stem that cut both bottom-out and upstroke noise, making it the standard quiet-office pick. Compare: Kailh Box Silent Pink vs Cherry MX Silent Red · popular
Kailh Midnight Silent Red Silent linear The Kailh Midnight Silent Red is a pre-lubed 40g silent linear with widened muffler pads in the housing that make it one of the quietest stock switches available. Compare: Kailh Box Silent Pink vs Kailh Midnight Silent Red
Wuque Studio WS Silent Linear Silent linear The Wuque Studio WS Silent Linear uses stem-rail cutouts instead of soft pads to dampen sound, giving a crisper bottom-out than most silent linears while staying very quiet. Compare: Kailh Box Silent Pink vs Wuque Studio WS Silent Linear

Which keyboards can use it?

Any hot-swap board with standard MX sockets accepts the Kailh Box Silent Pink (5-pin: check that your plate or PCB supports 5-pin, or clip the legs). Use the full keyboard database to shortlist hot-swap boards that fit your budget and size, or browse the keyboard database.
