Gateron Low Profile Red
Linear Gateron

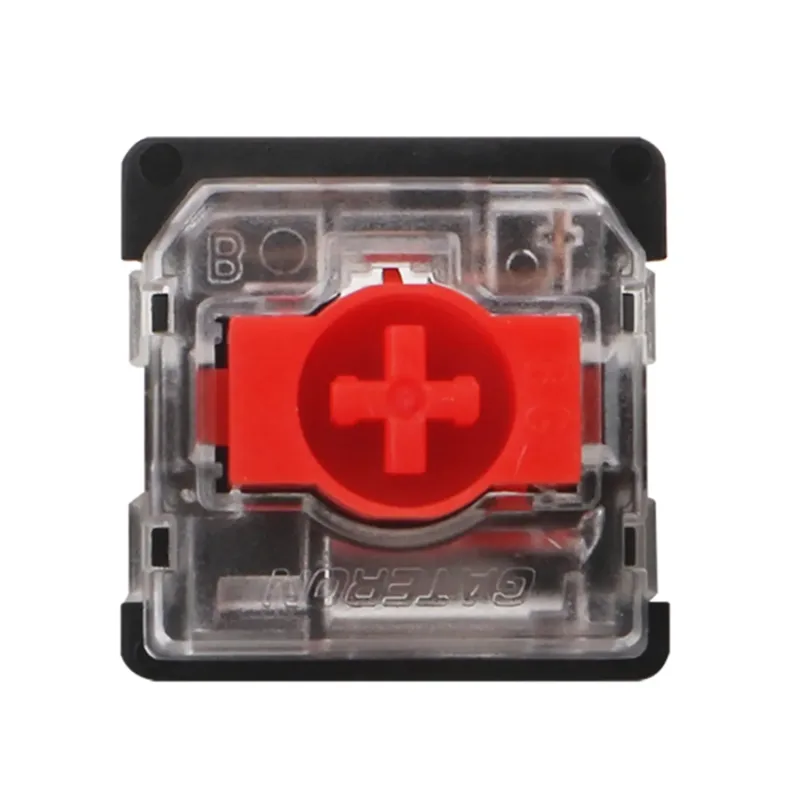

The Gateron Low Profile Red (KS-33) is a 45g slim linear with 2.5mm total travel used in low-profile boards like the Keychron K-series and NuPhy Air line.
Gateron Low Profile Red specs
| Type | Linear |
|---|---|
| Compatibility | Gateron low-profile boards only |
| Actuation force | 45g |
| Bottom-out force | 60g |
| Pre-travel | 1.5 mm |
| Total travel | 2.5 mm |
| Stem | POM |
| Top housing | transparent PC |
| Bottom housing | nylon |
| Spring | single-stage |
| Factory lube | light |
| Pins | 3-pin |
| Typical price | $0.23 / switch |
| Sound profile | shallow, clacky |
| Released | 2021 |
Spec fields marked n/a are unpublished by the maker; we list only verifiable numbers rather than guesses.
Unverified: specs compiled from manufacturer listings
Switches similar to the Gateron Low Profile Red
Keyboards sold with the Gateron Low Profile Red
Keychron K3 (V2) 75% · $85 · hot-swap The Keychron K3 (V2) is an ultra-slim 75% low-profile wireless keyboard offered with soldered Gateron low-profile mechanical switches or hot-swappable Keychron low-profile optical switches, in white or RGB backlight. Keychron K5 full · $75 · hot-swap The Keychron K5 is an ultra-slim full-size (104-key) low-profile wireless keyboard with an aluminum body, sold with soldered Gateron low-profile mechanical switches or hot-swappable Keychron low-profile optical switches. Keychron K7 65% · $64 · hot-swap The Keychron K7 is a 65% ultra-slim low-profile wireless keyboard aimed at portability, with hot-swap available on the optical and select Gateron low-profile mechanical variants. Keychron S1 75% · $83 · hot-swap The Keychron S1 is a wired 75% low-profile QMK/VIA keyboard with a CNC-machined all-aluminum slim body and LSA double-shot PBT keycaps, hot-swappable on the RGB hot-swap trim while the base white-backlight version is soldered.
Which keyboards can use it?
The Gateron Low Profile Red needs a Gateron low-profile board; low-profile footprints differ between makers, and Kailh Choc and Gateron low-profile switches cannot share a PCB, such as the Keychron K3 (V2). It is not compatible with standard MX mechanical hot-swap sockets. Check the keyboard manufacturer's supported-switch list before buying.
